DETERIORATED GLUE LAMINATED TUDOR ARCH AMPUTATION

Project: Congregations Sons of Israel - Upper Nyack , NY

Structural repair of deteriorated 50’ Glue Laminated Tudor Arches. Dajon was able to keep the facility opened and operational. Note: the facility continued to host all weekend services as well as funerals and celebrations. There was no loss of business. Dajon acted as a general contractor handling all masonry, miscellaneous carpentry and plumbing obstructions.

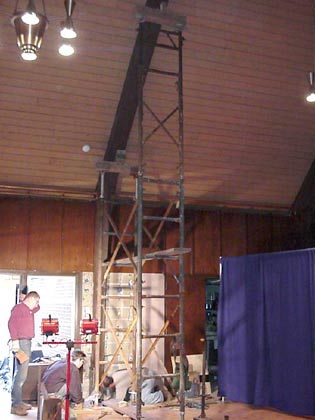

Picture 1 - 20K Shoring Tower supports peak connection.


Picture 2 - 20K Shoring Tower supports deteriorated arch les at amputation.


Picture 3 - Tudor arch is cut to height of new built steel shoe. Initial holes are drilled .

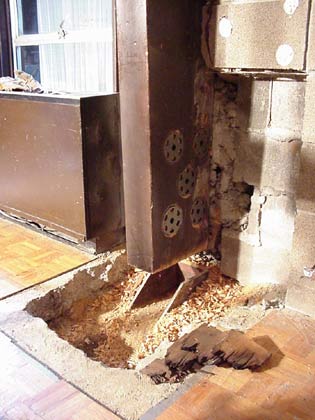

Picture 4 - New built up steel shoe is removed and shear plates are installed to strengthen connection.


Picture 5 - Steel shoe is once again installed after shear plating is completed.


Picture 6 - Care is taken to align all the fabricated holes.


Picture 7 - New steel shoe is bolted and shoring is removed.

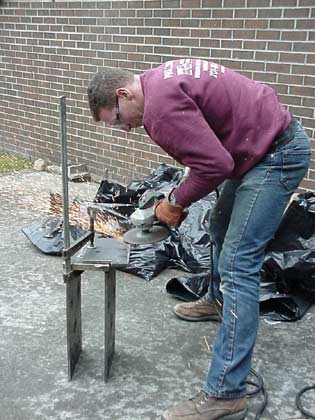

Picture 8 - Dajon employee field fabricates the new built up steel shoe.
