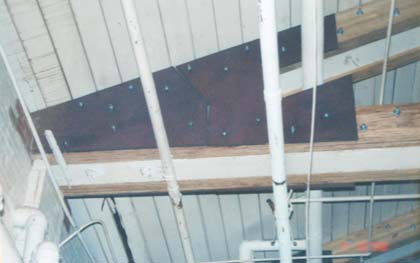

Picture 4- Marcal Paper- Elmwood Park, NJ
- Two piece steel gusset installed to strengthen existing
heel connection. Dajon was forced to design this two piece
assembly to avoid existing plumbing obstructions.

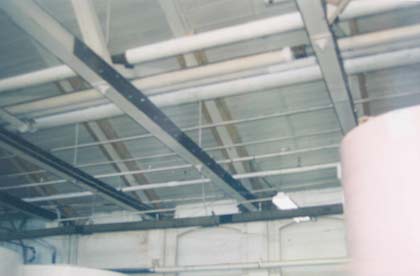

Picture 5- Marcal Paper- Elmwood Park, NJ
- New 1/2” steel plate was fabricated and installed
to reinforce existing bottom chord sections. New 3 1/2”
x 11 7/8” parallam was field fabricated and installed
to reinforce existing top chord sections. All work was
completed without business interruption.
